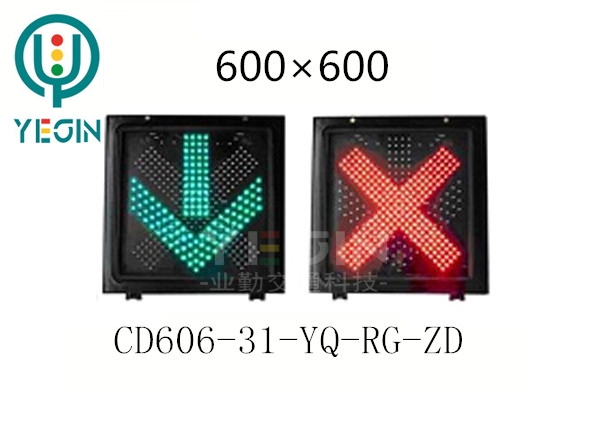

Red cross green arrow single side (light bead) sheet metal

600mm red cross green arrow single side (light bead)

Brand: YEQIN

Material: sheet metal

Model: CD606-31-YQ-RG-ZD

Specification: 600mm*600mm

Technical Parameters

« Multiple seals, waterproof

« Meets GB/14887-2011 and relevant international standards

« Red light: LED single brightness: 4360-5250, wavelength: 620-625nm, left and right viewing angle: 30°, power: ≤20W.

« Green light: LED single brightness: 8667-10400, wavelength: 503-506nm, left and right viewing angle: 30°, power: ≤20W.

« Ambient temperature: -40°C~+80°C

« Working voltage: AC220V

« Lightbox housing material: PC

« IP rating: IP53

Visual distance ≥500m
